Product Details
Place of Origin: Hubei, China
Brand Name: OEM
Model Number: See details
Payment & Shipping Terms
Minimum Order Quantity: 100 watts
Price: $0.23-0.27 / watt
Cell Size: |
182mmx182mm |
Type: |
Half Cell |
Panel Dimensions: |
2278 * 1134 * 35mm(89.69*44.65*1.38in) |
Panel Efficiency: |
21.3% |
Application: |
Solar Power System |
Product Name: |

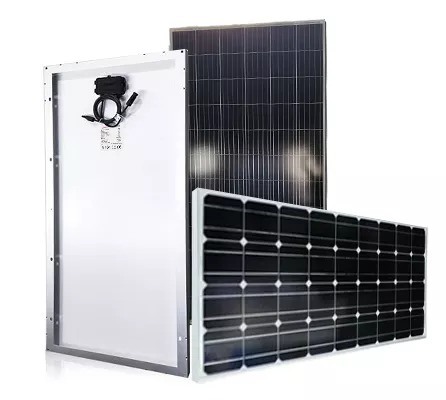

Monocrystalline Silicon Solar Panel |
Warranty: |
1 Year, 30 Year |
Solar Cell: |
144 Cells |
OEM Order: |
Acceptable |
Color: |
Customized Color |
Efficiency: |
20%-23% |
Frame: |
Anodized Aluminium Alloy |
Keyword: |
Solar Energy Panel |
Material: |
Monocrystaline Silicon |
Certificate: |
CE,CQC,TUV |
Cell Size: |
182mmx182mm |
Type: |
Half Cell |
Panel Dimensions: |
2278 * 1134 * 35mm(89.69*44.65*1.38in) |
Panel Efficiency: |
21.3% |
Application: |
Solar Power System |
Product Name: |
Monocrystalline Silicon Solar Panel |
Warranty: |
1 Year, 30 Year |
Solar Cell: |
144 Cells |
OEM Order: |
Acceptable |
Color: |
Customized Color |
Efficiency: |
20%-23% |
Frame: |
Anodized Aluminium Alloy |
Keyword: |
Solar Energy Panel |
Material: |
Monocrystaline Silicon |
Certificate: |
CE,CQC,TUV |
|
Electrical Characteristic |
|||||||||
|
Rated output (Pmp/Wp) |
520W |
525W |
530W |
535W |
540W |
545W |
550W |
555W |
560W |
|
Open Circuit Voltage(Voc) |
48.9 |
49.05 |
49.20 |
49.35 |
49.50 |
49.65 |
49.90 |
50.05 |
50.20 |
|
Short Circuit Current(Isc) |
13.57 |
13.65 |
13.71 |
13.78 |
13.85 |
13.92 |
14.00 |
14.07 |
14.14 |
|
Maximum Power Voltage(Vmpp) |
41.05 |
41.20 |
41.35 |
41.50 |
41.65 |
41.80 |
41.96 |
42.12 |
42.28 |
|
Maximum Power Current(Impp) |
12.67 |
12.79 |
12.82 |
12.90 |
12.97 |
13.04 |
13.11 |
13.18 |
13.25 |
|
Module efficiency(%) |
20.3% |
20.5% |
20.7% |
20.9% |
21.1% |
21.3% |
21.5% |
21.7% |
21.9% |
|
Standard Test Condition(STC) |
Irradiance 1000w/m2, Cell Temperature 25 Centigrade, Air Mass 1.5 |
||||||||
|
Mechanical Characteristic |
|||||||||
|
No.of Cells |
144(6x24) |
||||||||
|
Weight |
32.3kg |
||||||||
|
Dimension |
2256x1133x35mm |
||||||||
|
Junction Box |
IP68,three diodes |
||||||||
|
Output Cables |
4mm2,positive 400mm /negative 200mm ,length can be customized |
||||||||
|
Glass |
Dual glass,3.2mm coated tempered glass |
||||||||
|
Frame |
Anodized aluminum alloy frame |
||||||||
